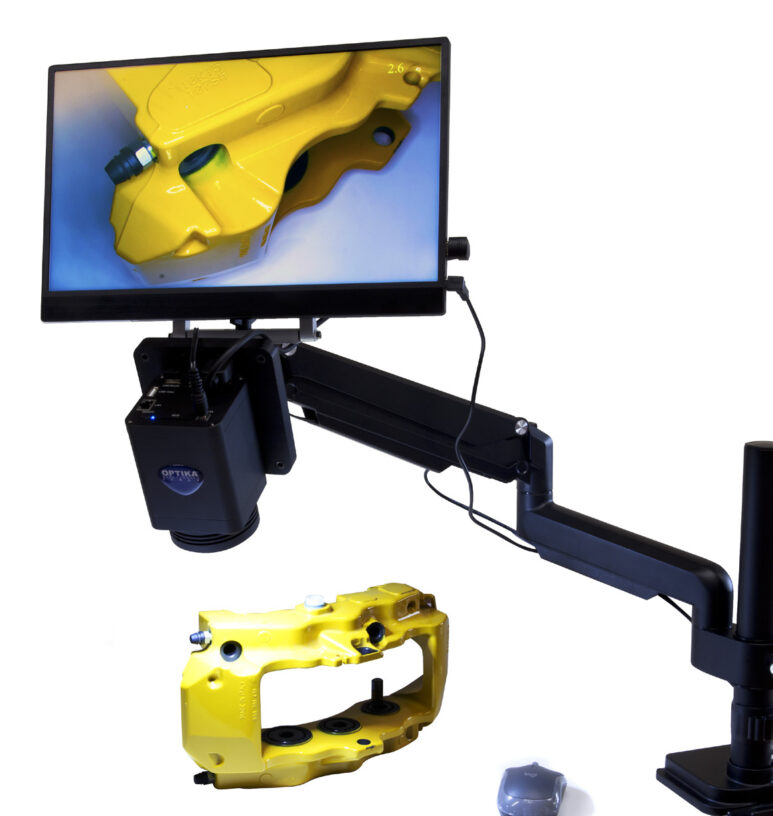

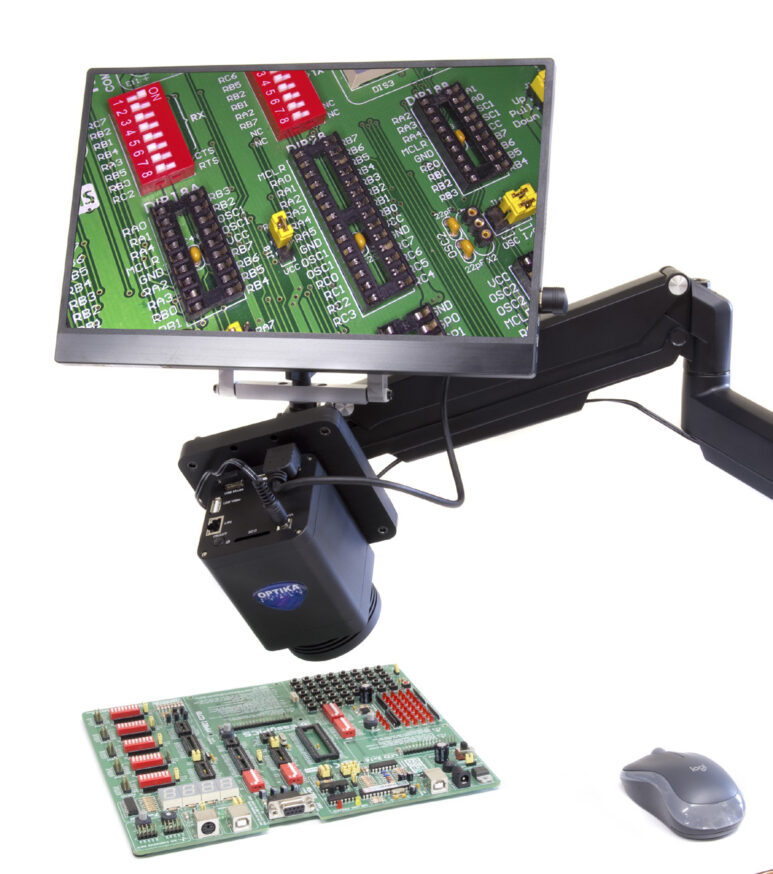

IS-4K3
Advanced inspection system suitable for intensive use, ideal for video inspection in quality control of electronics, mechanics, and other industrial applications.
IS-4K3 includes the real-time full HD auto-focus camera with relevant zooming capalibilities (optical zoom is 1x…18x).
Crystal clear 4K live view is shown trough a large HD monitor, with incredibly fast connection (30 fps). Its angle of view is fully adjustable and it enables instant focus in less than 1 sec. with no need to constantly adjust lens position. In addition, the working distance goes to infinity, making it the recommended solution to inspect multi-layered objects.
All functions are controlled directly from the screen via a wireless mouse.
Images and videos can be saved on the SD card and easily transferred on any device.
The system is completed by the table clamping SZ-STL5 highly versatile flexible arm stand, 360° rotating, ideal for high and large samples and on every bench thanks to its compact ootprint, saving valuable space on the bench.
HDMI MONITOR
Type: LCD screen 360° rotating, freely inclinable for ergonomic vision
Size: 15.6”
Power supply: 5V / 4A
STAND
Type: Coarse, Pantograph, with table
Coarse total travel (mm) 50
Adjustable tension Yes
Head holder internal diameter (mm) 76
Pillar diameter (mm) 35
Total height (mm) 327
Total width (mm) 300
Total depth (mm) 800
Horizontal arm (mm) 737
Product Weight (kg) 5.1
ACCESSORIES
Accessories Included: LED ringlight, HDMI cable (0,3m), Wireless Mouse, SD card and WiFi Adapter.
CAMERA
HDMI camera resolution (MP): 8
Camera resolution (n° of pixels: W x H): 3840×2160
HDMI signal output: Yes
WiFi signal output: Yes
Sensor size: 1/2.8”
Sensor technology: CMOS
Sensor type: SONY STARVIS
Optical zoom: 1x-18x
Rolling shutter: Yes
Autofocus: Yes
Image format: 16/9
Pixel size (mm): 1.45×1.45
Frame rate full resolution (fps): 30@3840×2160
Camera power: 12V / 3A
Dimensions (mm): 80 x 80 x 116
Weight (Kg): 0,68
