B-1000LD4


Back to B-1000 Models
Back to Fluo Models

The modular OPTIKA B-1000 can stand a LED fluorescence attachment, helping you working in a comfortable way during extended periods of use and performing reliable, accurate and rapid diagnosis benefiting from modularity, which gives the chance to create customized configurations tailored on customer needs. Versatile, robust, durable and sturdy, B-1000 offers premium quality optics (including Apo and Semi-Apo objectives), the state-of-the-art, exclusive X-LED8 (8 W) illumination system, designed by OPTIKA and the Koehler diaphragm.
B-1000 gives multiple options as manual or motorized configuration, with a variety of objectives, stages and condensers.



Build the microscope that suites your needs by choosing among the components



Eyepieces
M-781 – PL10x/22 eyepiece, high eyepoint, with micrometric scale (10mm/100um) & rubber cup (retractable)
M-1001 – PL10x/22 eyepieces (pair), high eyepoint, with rubber cup (retractable)
M-1003 – PL15x/16 eyepieces (pair), high eyepoint

Head
M-1011 – Trinocular head, three positions (100/0, 50/50, 0/100)
M-1012  – Binocular ERGO head

Attachments

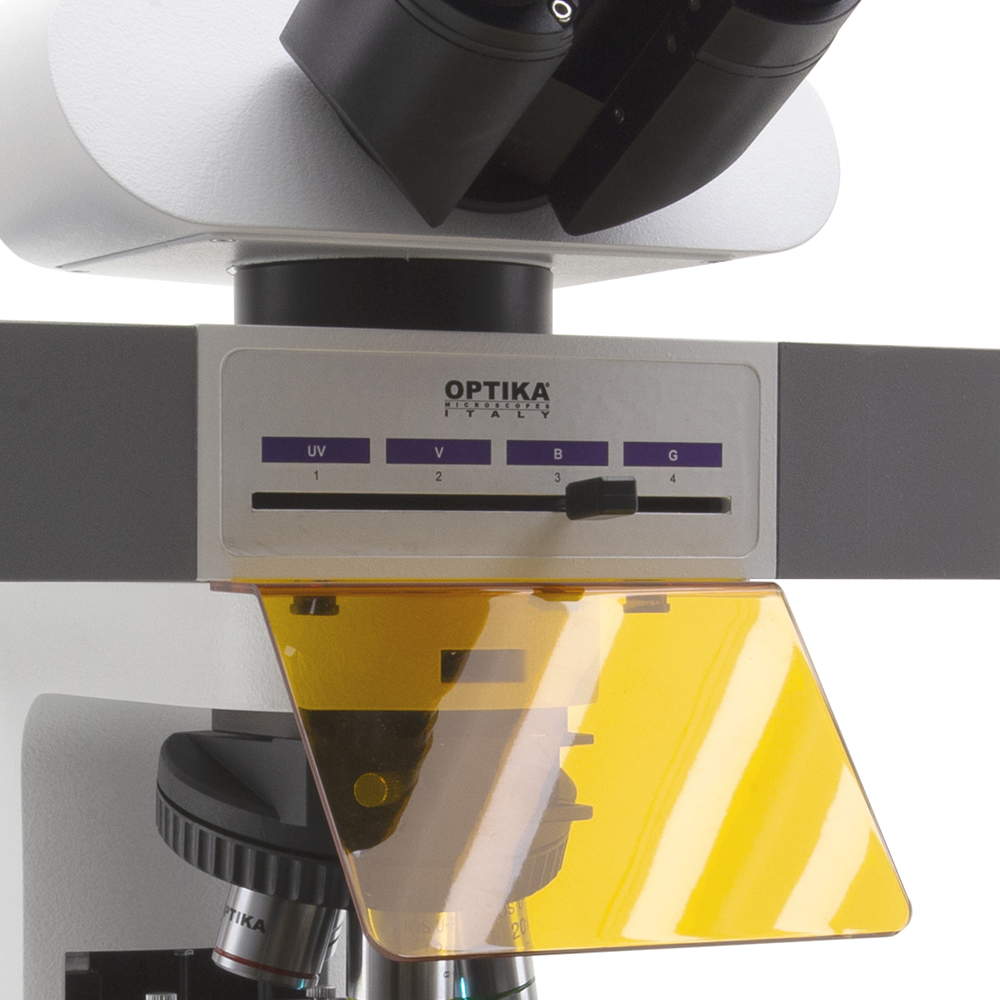

M-1031M – 4-position LED Fluorescence attachment, without LED fluorescenceFilterset

Body
M-1021B – Main body with focus system and X-LED8 illumination, for general purposes
M-1021B+M-1156*+M-1149 – Main body with motorized focus

Nosepiece
M-1042 – Sextuple reversed nosepiece, for RMS objectives with DIC slot
M-1043+M-1156* – Sextuple motorized reversed nosepiece, for RMS objectives with DIC slot

Objectives
M-1075 – M-1076 – M-1077 – M-1078 – M-1079 – IOS U-PLAN F objectives
M-1060 – M-1061 – M-1062 – M-1063 – M-1064 – IOS W-PLAN F objectives
M-1049 – M-1125 – M-1126 – M-1127 – M-1128 – M-1129 – M-1130 – IOS W-PLAN objectives

Stage
M-1140 – Standard mechanical stage
M-1141 – Rackless mechanical stage
M-1143 – MPC (Mineral Solid Surface) rackless mechanical stage
M-1144 – Heating stage, with digital temperature controller
M-1147+M-1156* – Motorized mechanical stage

Condenser
M-1150 – 0.90 N.A. swing-out condenser
M-1151 – 1.2 N.A. swing-out condenser
M-1155 – 0.9/0.25 N.A. swing-out condenser (to be used with objective M-1049)
M-618 – Darkfield condenser for dry objectives

* Code M-1156 must be added only once for any motorized configuration



Related Literature:





A new milestone achieved in Fluorescence Microscopy

» Full-modular Fluorescence System
» Interchangeable LED-Filtersets
» 4 LED-Filtersets slots
» 10% higher light intensity than HBO
» 35% higher light intensity than Metal-Halide
» Adjustable light intensity
» The selection of filtersets automatically involves the switching on of the corresponding LEDs
» Recommended for research applications
» Cost-effective, money saving technology
» Ready for immediate operation
» Eliminate warm-up/cool-down times
» Forget lamp replacement & centering

LED Fluorescence Cubes available (LED + Filterset)

line

Name: M-1220 – Blue


LED Emission (nm): 460
Excitation filter (nm):  450-490
Dichroic mirror cut-off (nm): 495
Emission filter (nm): 520LP

Name: M-1221 – Green


LED Emission (nm): 523
Excitation filter (nm):  510-550
Dichroic mirror cut-off (nm): 570
Emission filter (nm): 575LP

Name: M-1222 – Violet


LED Emission (nm): 405
Excitation filter (nm):  390-420
Dichroic mirror cut-off (nm): 440
Emission filter (nm): 450LP

Name: M-1223 – UV


LED Emission (nm): 365
Excitation filter (nm):  325-375
Dichroic mirror cut-off (nm): 415
Emission filter (nm): 435LP

Name: M-1224 – Red 1


LED Emission (nm): 623
Excitation filter (nm):  590-650
Dichroic mirror cut-off (nm): 660
Emission filter (nm): 665LP

Name: M-1225 – Red 2


LED Emission (nm): 623
Excitation filter (nm):  595-645
Dichroic mirror cut-off (nm): 655
Emission filter (nm): 665-715

Name: M-1226 – Deep Red


LED Emission (nm): 660
Excitation filter (nm):  623-678
Dichroic mirror cut-off (nm): 685
Emission filter (nm): 690-750

Name: M-1227 – Far Red


LED Emission (nm): 740
Excitation filter (nm):  720-760
Dichroic mirror cut-off (nm): 770
Emission filter (nm): 780LP

Name: M-1228 – Amber


LED Emission (nm): 590
Excitation filter (nm):  582-603
Dichroic mirror cut-off (nm): 610
Emission filter (nm): 615-645

Pass Band LED Fluorescence Cubes

Name: M-1220.1 – Blue (pass band)


LED Emission (nm): 460
Excitation filter (nm):  455-495
Dichroic mirror cut-off (nm): 500
Emission filter (nm): 518-542

Name: M-1221.1 – Green (pass band)


LED Emission (nm): 523
Excitation filter (nm): 510 – 550
Dichroic mirror cut-off (nm): 570
Emission filter (nm): 585-625

Name: M-1223.1 – UV (pass band)


LED Emission (nm): 365
Excitation filter (nm): 340 – 390
Dichroic mirror cut-off (nm): 405
Emission filter (nm): 420-470

* If the use of a camera is needed, when used for red emission fluorescence wavelengths above 650nm, please order OPTIKA camera code C-P6AR.
