B-1000FL-HBO
Back to B-1000 Models
Back to Fluo Models
Build the microscope that suites your needs by choosing among the components
Eyepieces
M-781 – PL10x/22 eyepiece, high eyepoint, with micrometric scale (10mm/100um) & rubber cup (retractable)
M-1001 – PL10x/22 eyepieces (pair), high eyepoint, with rubber cup (retractable)
M-1003 – PL15x/16 eyepieces (pair), high eyepoint
Head
M-1011 – Trinocular head, three positions (100/0, 50/50, 0/100)
M-1012 – Binocular ERGO head
Attachments
M-1032 – 6-position HBO Fluorescence attachment, with standard Blue and Green filtersets (FITC & TRITC)
Fluorescence filterset
M-1165 – Fluorescence filterset V (filterblock included)
M-1166 – Fluorescence filterset UV (filterblock included)
Body
M-1021B – Main body with focus system and X-LED8 illumination, for general purposes
M-1021B+M-1156*+M-1149 – Main body with motorized focus
Nosepiece
M-1042 – Sextuple reversed nosepiece, for RMS objectives with DIC slot
M-1043+M-1156* – Sextuple motorized reversed nosepiece, for RMS objectives with DIC slot
Objectives
M-1075 – M-1076 – M-1077 – M-1078 – M-1079 – IOS U-PLAN F objectives
M-1060 – M-1061 – M-1062 – M-1063 – M-1064 – IOS W-PLAN F objectives
Stage
M-1140 – Standard mechanical stage
M-1141 – Rackless mechanical stage
M-1143 – MPC (Mineral Solid Surface) rackless mechanical stage
M-1144 – Heating stage, with digital temperature controller
M-1147+M-1156* – Motorized mechanical stage
Condenser

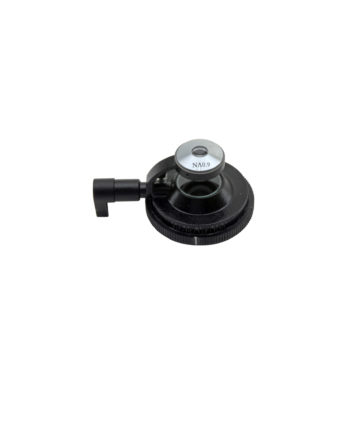

M-1150 – 0.90 N.A. swing-out condenser
M-1151 – 1.2 N.A. swing-out condenser
M-618 – Darkfield condenser for dry objectives
* Code M-1156 must be added only once for any motorized configuration
Standard filterset
Name: B Blue
Excitation filter (nm): 460-490
Dichroic mirror cut-off (nm): 500
Excitation filter (nm): 520LP
Name: G Green
Excitation filter (nm): 510-550
Dichroic mirror cut-off (nm): 570
Excitation filter (nm): 590LP
Additional filterset (optional)
Name: V (Violet)
Excitation filter (nm): 400-410
Dichroic mirror cut-off (nm): 455
Excitation filter (nm): 455LP
Name: UV
Excitation filter (nm): 330-385
Dichroic mirror cut-off (nm): 400
Excitation filter (nm): 420LP
