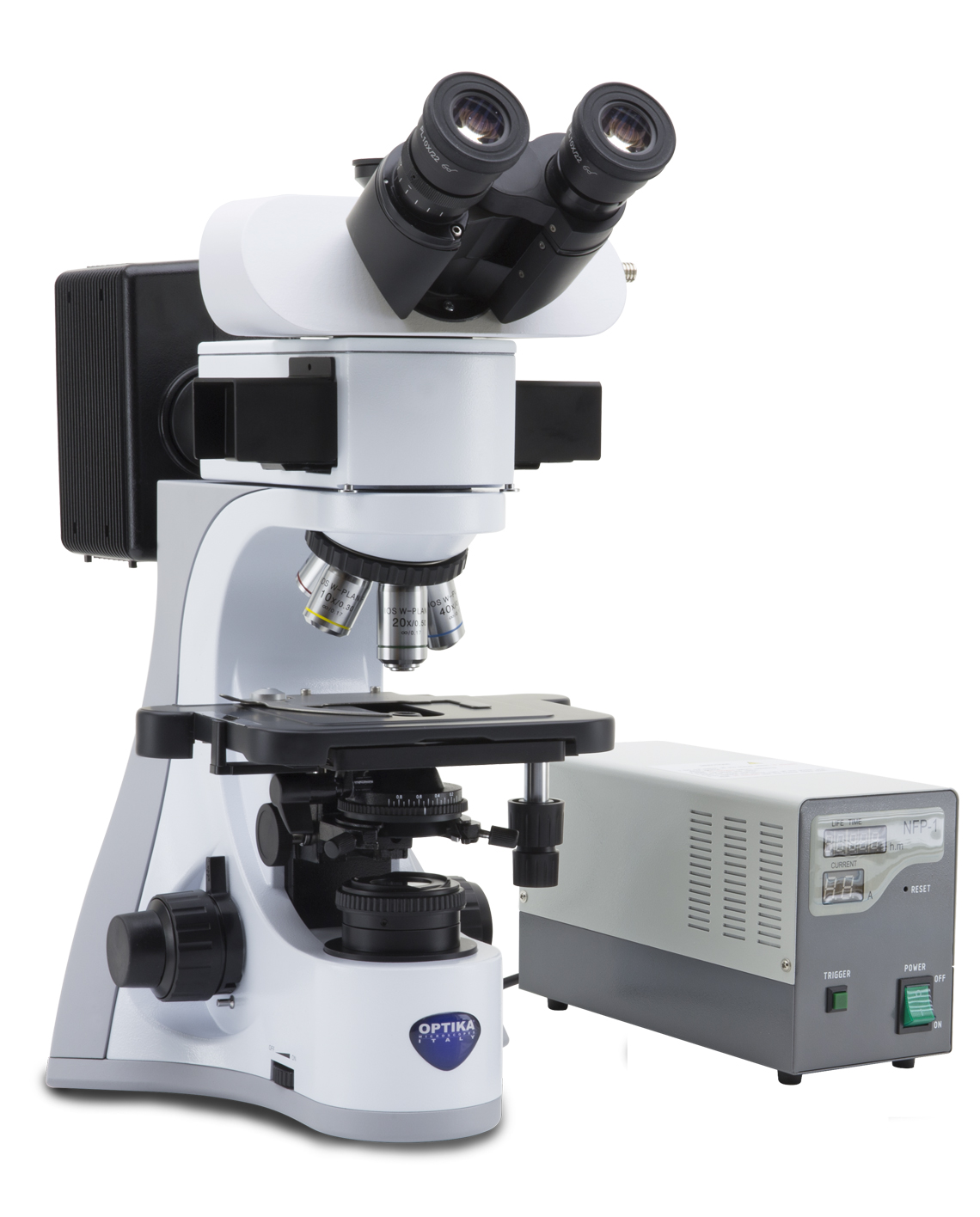

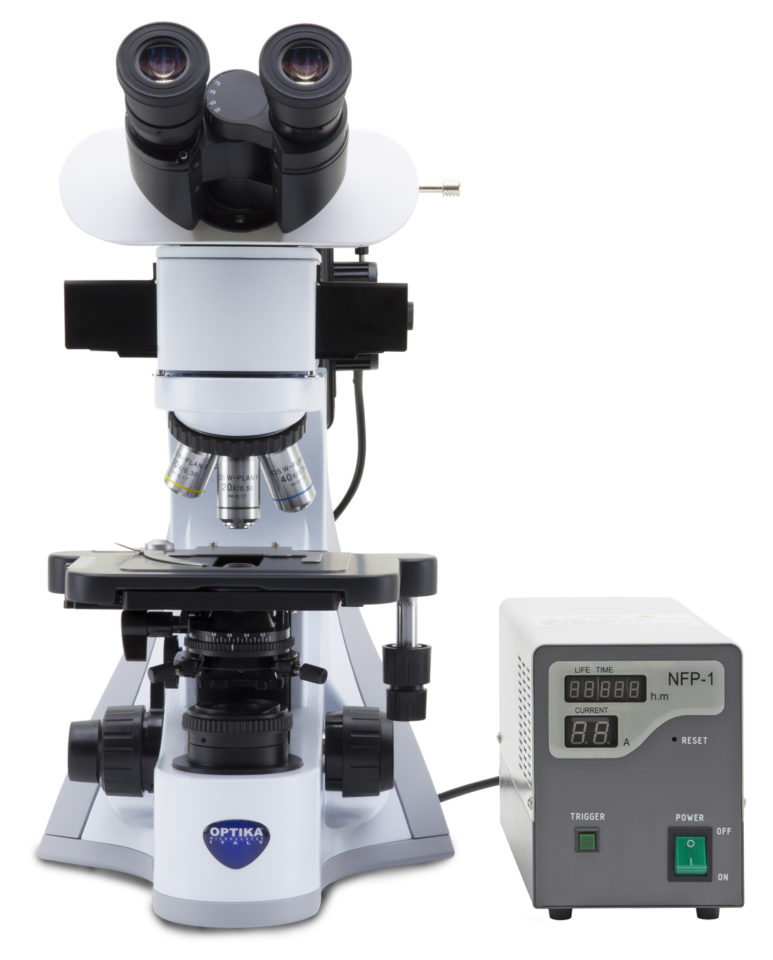

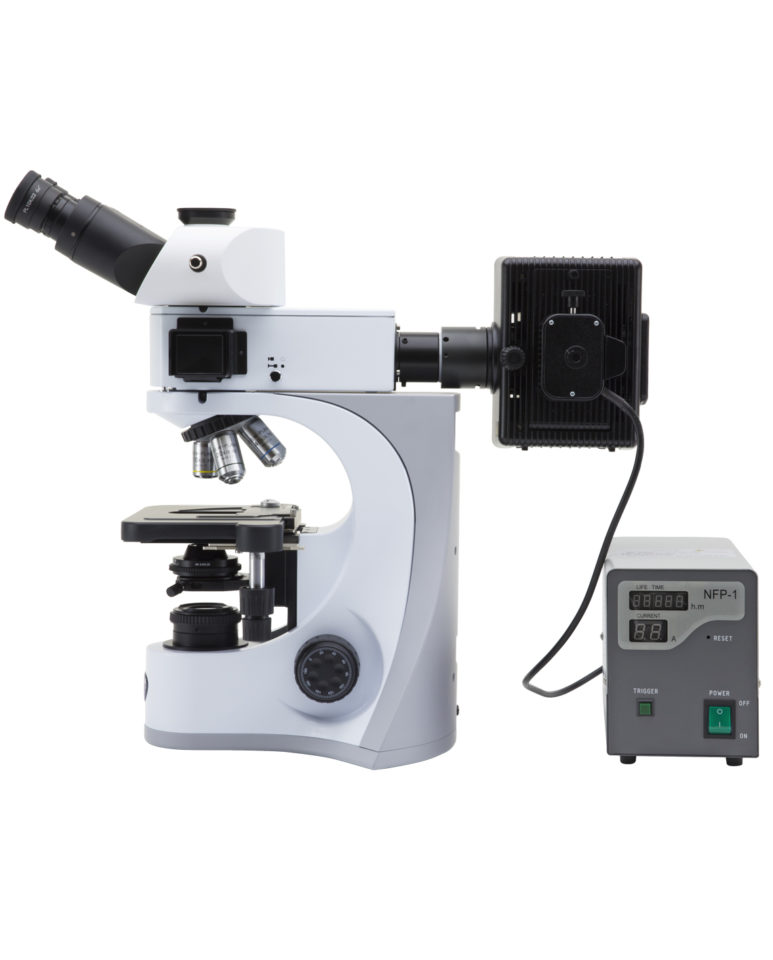

B-510FL
Back to B-510 Models
Back to Fluo Models
Observation mode: Brightfield, HBO fluorescence.
Epi-illumination and filter: HBO 100 W high pressure mercury lamp. 4-position filter holder; blue & green included.
Head: Trinocular (3-position 100/0, 50/50, 0/100), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
– IOS W-PLAN F 4x/0.13
– IOS W-PLAN F 10x/0.30
– IOS W-PLAN F 20x/0.50
– IOS W-PLAN F 40x/0.75
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable.
Transmitted illumination (Full Koehler type): X-LED³ with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.
Standard filterset
Name: B Blue
Excitation filter (nm): 460-490
Dichroic mirror cut-off (nm): 505
Excitation filter (nm): 515LP
Name: G Green
Excitation filter (nm): 510-550
Dichroic mirror cut-off (nm): 570
Excitation filter (nm): 590LP
Additional filterset (optional)
Name: V (Violet)
Excitation filter (nm): 390-420
Dichroic mirror cut-off (nm): 440
Excitation filter (nm): 455LP
Name: UV
Excitation filter (nm): 325-375
Dichroic mirror cut-off (nm): 415
Excitation filter (nm): 435LP
