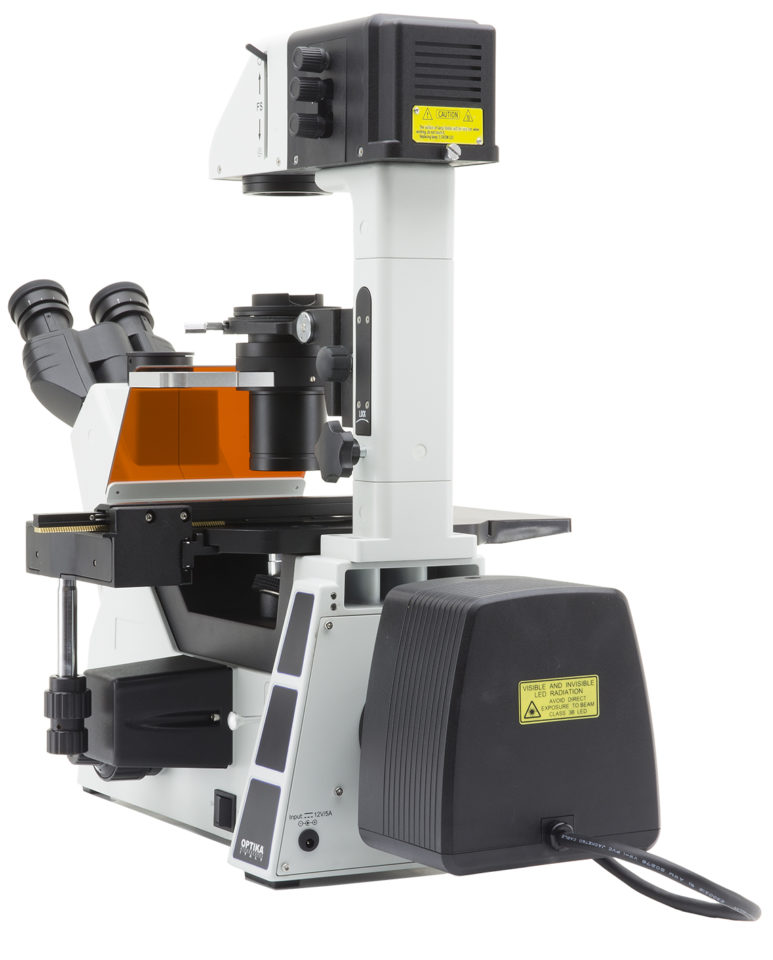

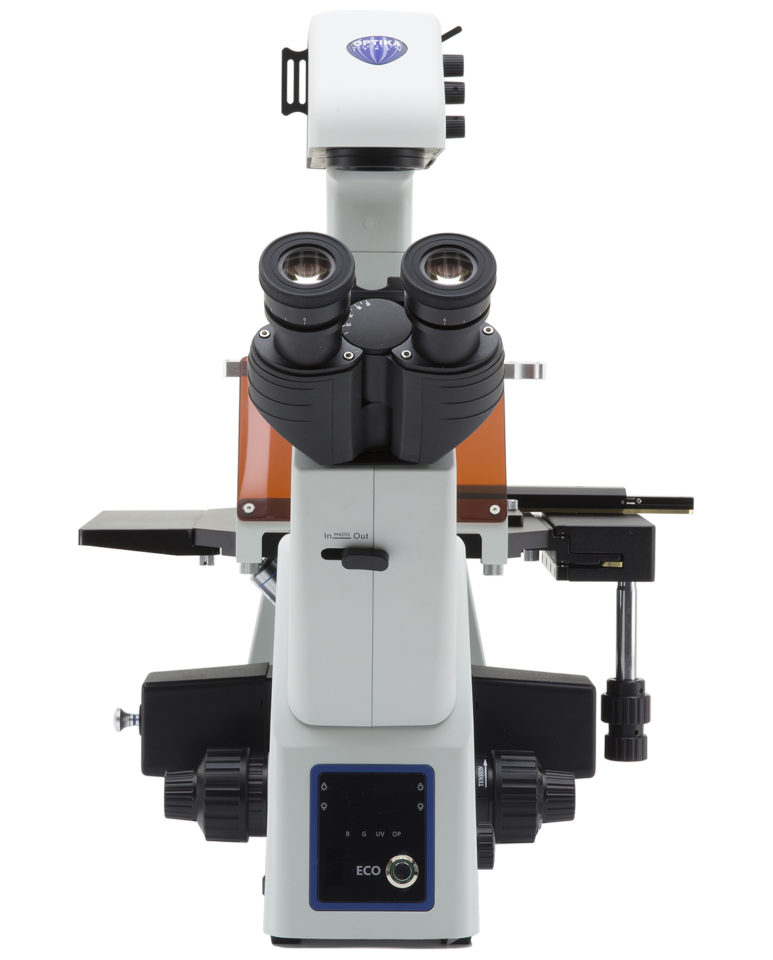

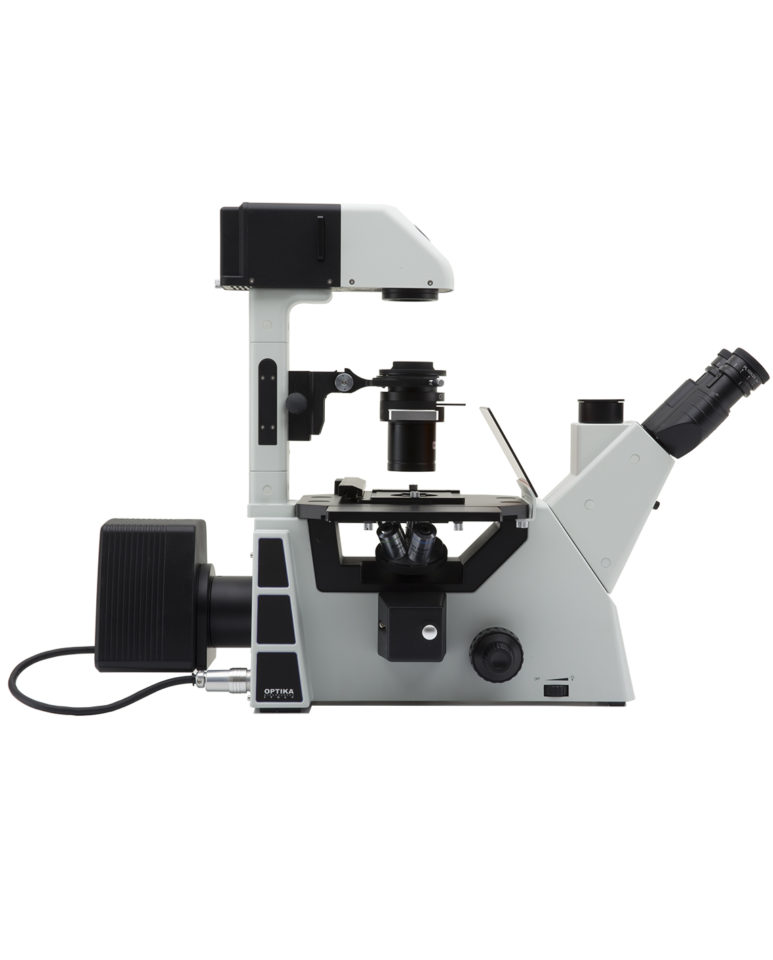

IM-5FLD
Back to IM-5 Models
Back to Fluo Models
Head: Trinocular (split ratio: 100/0, 0/100), 45° inclined.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: Both eyepieces.
Eyepieces: WF10x/24 mm, high eyepoint and with retractable rubber cups.
Epi-fluorescence illumination & filters: High-power 5 W LEDs with brightness control, motorized LED selection with centrable field diaphragm, 4-position filter holder; blue (EX 450-490, DM 495, EM 500-550), green (EX 540-580, DM 585, EM 608-682) and UV (EX 340-390, DM 400, EM 420LP) excitation filters included.
Nosepiece: Quintuple ball bearings revolving nosepiece, reversed.
Objectives: Selectable according to customer’s preferences. All with anti-fungus treatment.
Specimen stage: Fixed stage, 215×250 mm and attachable mechanical stage, 290×250 mm, 120×80 mm X-Y movement range.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: Abbe N.A. 0.50, removable, with iris diaphragm and slider for phase contrast.
Transmitted illumination (Full Koehler): X-LED8 with white 8 W LED and brightness control. Color temperature: 6,300 K. Multi-plug 100-240Vac/12Vdc external power supply.
Standard filtersets
Name: B (Blue)
Excitation filter (nm): 450–490
Dichroic mirror cut-off (nm): 495
Emission filter (nm): 500-550
Name: G (Green)
Excitation filter (nm): 540–580
Dichroic mirror cut-off (nm): 585
Emission filter (nm): 607-682
Name: UV (Ultraviolet)
Excitation filter (nm): 340-390
Dichroic mirror cut-off (nm): 400
Emission filter (nm): 420LP
Objectives
To be chosen among:
Plan-Achromatic LWD for brightfield:
– IOS LWD W-PLAN 4x/0.13, W.D. 10.4 mm (M-782)
– IOS LWD W-PLAN 40x/0.60, W.D. 3.1 mm (M-773)
– IOS LWD W-PLAN 60x/0.70, W.D. 1.7 mm (M-786)
Plan-Achromatic LWD for phase contrast:
– IOS LWD W-PLAN PH 4x/0.13, W.D. 10.4 mm (M-782.1)
– IOS LWD W-PLAN PH 10x/0.25, W.D. 7.3 mm (M-783N)
– IOS LWD W-PLAN PH 20x/0.40, W.D. 6.8 mm (M-784N)
– IOS LWD W-PLAN PH 40x/0.65, W.D. 3 mm (M-785)
Semi-Apochromatic LWD for brightfield:
– IOS LWD U-PLAN F 4x/0.13, W.D. 18.52 mm (M-800)
– IOS LWD U-PLAN F 10x/0.30, W.D. 7.11 mm (M-801)
– IOS LWD U-PLAN F 20x/0.45, W.D. 5.91 mm (M-802)
– IOS LWD U-PLAN F 40x/0.65, W.D. 1.61 mm (M-803)
– IOS LWD U-PLAN F 60x/0.75, W.D. 1.04 mm (M-804)
Semi-Apochromatic LWD for phase contrast:
– IOS LWD U-PLAN F PH 20x/0.45, W.D. 5.91 mm (M-1177)
– IOS LWD U-PLAN F PH 40x/0.65, W.D. 1.61 mm (M-1178)
