IS-01

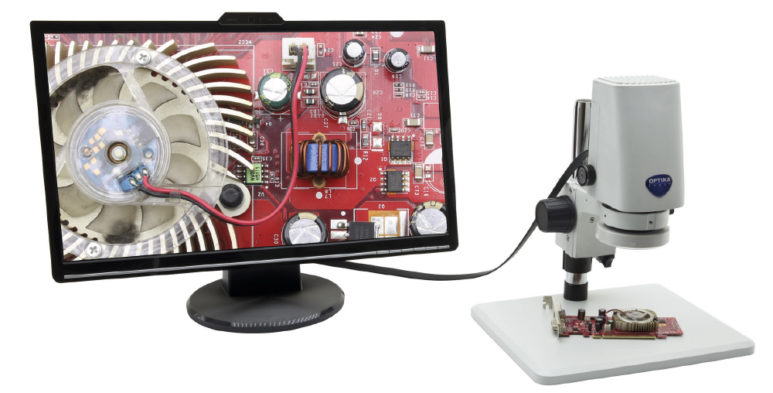

OPTIKA IS-01 is a compact, all-in-one video microscope with integrated HDMI camera and built-in software.
Ideal for achieving up to 50X magnifications and performing measurements.
It’s recommended when repeatability is required thanks to the click-stop mechanism at different magnifications steps.
With 60 frames per second at full resolution and 1080 HD image quality, you can see, on a plugged HDMI monitor, the same as what you see through the microscope eyepieces.
IS-01SMD
Also available in the version with 3D Attachment with rotational angle-view IS-01SMD
IS-01/IS-01SMD Main Body
Observation Method
Brightfield: Yes
Head
Construction material: Plastic mold / Aluminum gears
Objective
Optical system: 160 mm
Anti-fungus treatment: Yes
Objective Type: Achromatic
Zoom: type Parfocal achromatic
Working distance (mm): 110
Standard magnifications: 0.7x-5x
Zoom ratio: 7.14
Zoom click stops_ At 0.7x, 1x, 1.5x, 2x, 2.5x, 3x, 4x, 5x
Focusing System
Type: Coarse
Coarse total travel (mm): 50
Adjustable tension: Yes
Head holder internal diameter (mm): 76
Head
Type: Pillar
Pillar diameter (mm): 32
Resolution (MP): 2
Sensor type: CMOS
Sensor size: 1/2.8”
Sensor aspect ratio: 16/9
Full image size: 1920×1080
Pixel size (μm): 2.9×2.9
Frame rate: 60 fps (1920×1080)
S/N ratio (dB): >50
Dynamic range (dB): >50
Sensitivity (V/lux*s @550nm): 0.4
Exposure time (s): 0.02 – 1/10000
USB type: 2.0
Software: built-in
Incident Illumination
Type: LED
Light source power (W): 1
Illuminance (lux): 60000
Brightness control: Manual
Lifetime (hours): > 65000
Temperature (K): 6300
Max. required power (W): 3
Power Supply for Illumination
Type: External
Microscope connector: Jack, 2.1 mm
Power plug type: Multi-plug (EU, UK, US)
Input voltage: 110/240 Vac, 50/60 Hz
Output voltage: 12 Vdc
Additional Information
Maximum sample height (mm): 150
Product Dimensions
Total height (mm): 510
Total width (mm): 320
Total depth (mm): 260
Weight: 4.3 kg
