SFX-85V

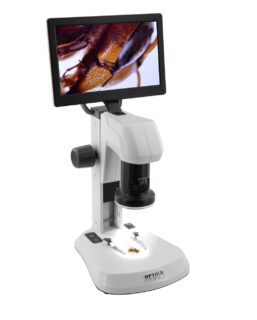

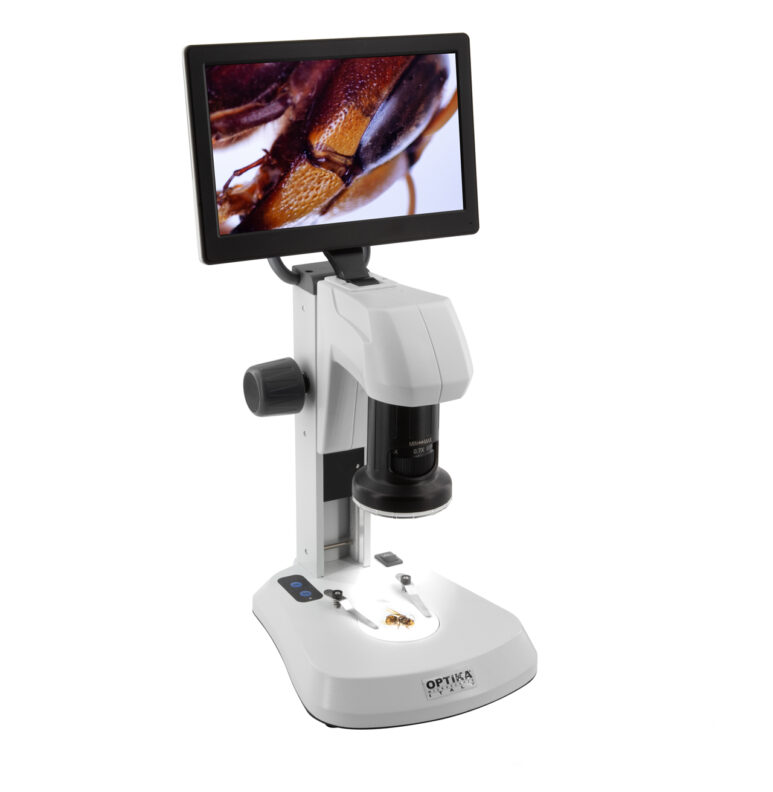

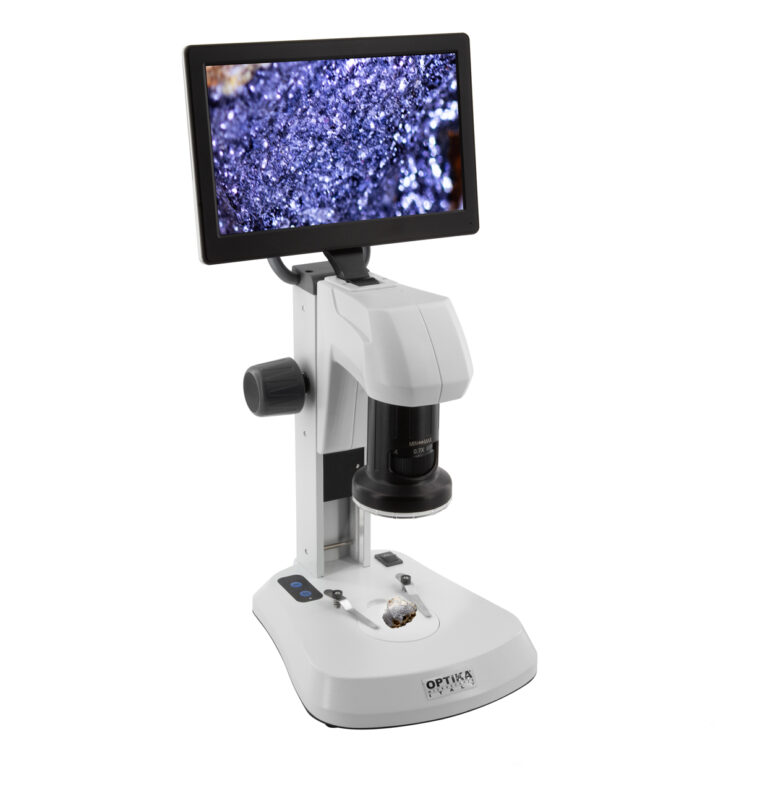

SFX Digital Zoom microscope with 9″ monitor, 8x 54x, LED Incident & transmitted light

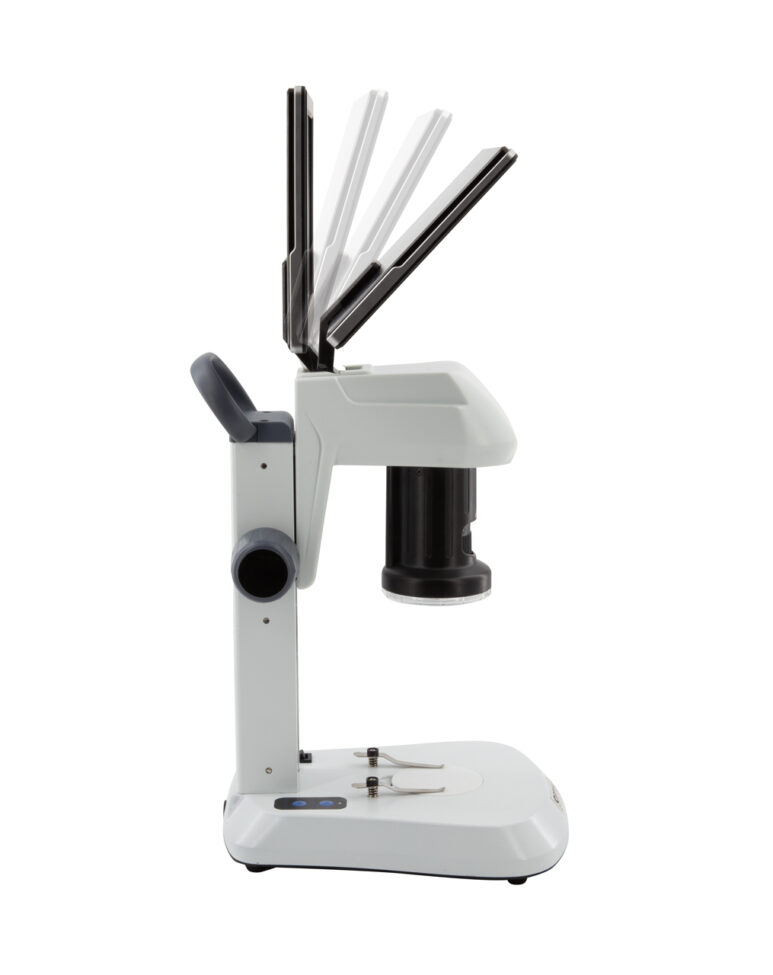

SFX-85V digital microscope is designed to meet the diverse needs of educational settings, industrial applications, and hobbyists alike. Featuring a 5MP built-in camera and tilting/folding 9” monitor with integrated software, this microscope enables users to capture high-quality images and videos seamlessly.
The zoom objective lens offers optical magnification from 0.7X to 4.5X, making it perfect for various applications such as dissection, soldering, and machining.
The total magnifications on monitor ranges from 8x to 4.5x, it provides versatility for observing a wide array of specimens. The brightfield observation method ensures clear and detailed views, whether for educational demonstrations or intricate industrial inspections.
The integrated software offers a user-friendly experience, allowing for various functions such as image enhancement, measurement tools, and video recording. Users can easily switch between manual and automatic exposure settings, making it suitable for both novice and experienced users. The USB port allows to export videos and images through a SD card (included). The software control is driven by a computer mouse supplied with the microscope.
Whether you’re in a classroom, a laboratory, or exploring your hobbies, this digital microscope delivers a powerful and engaging tool for discovery and learning.
Technical features:
Zoom Optics: 0.7X to 4.5X
Total Magnification on Monitor: 8x to 54x
Camera: 5MP, CMOS
Monitor: 9” screen
Working distance: 100 mm
Stand: High-grade fixed stand with focus and handle.
Focusing: Rack and pinion focusing mechanism.
Illumination:
Incident: 21 LEDs, 1W in total
Transmitted: 1W LED.
Touch brightness control.
Multi-plug 100-240Vac, 50/60 Hz external power supply.

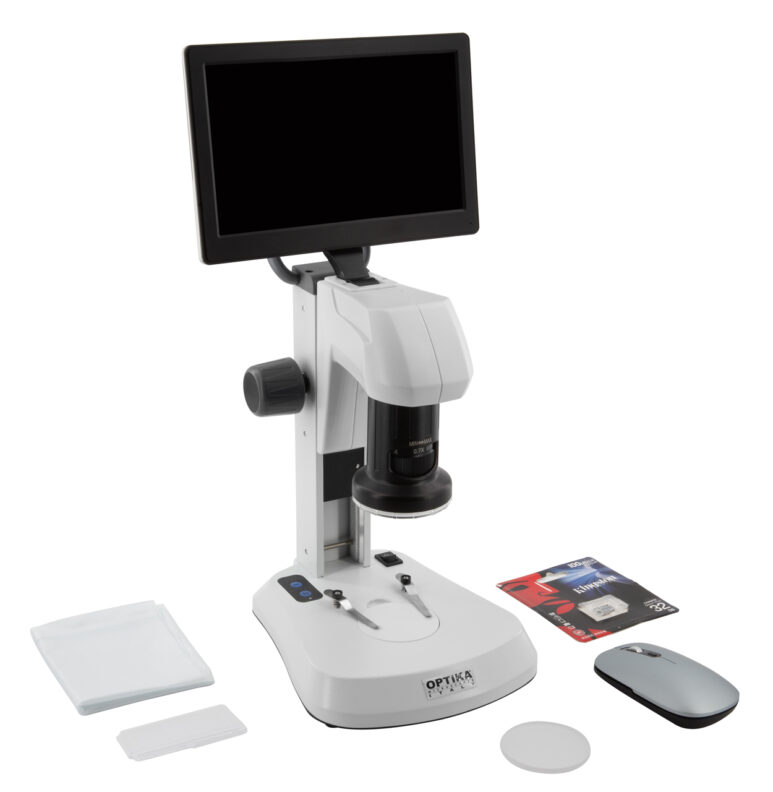

Accessories included:
- Calibration Slide
- Dust Cover
- Glass stage plate
- Black/white plastic stage plate
- User Manual: Digital version available
- SD card: for images and videos storage
- Mouse
Related Literature:
OPTIKA – SFX-85V – Technical Datasheet – EN - 202.89 KB
