OPTIKA – SLX – Instruction Manual – EN IT ES FR DE PTImages are for illustrative purposes only
High eyepoint eyepieces for glasses wearers
These eyepieces are designed in such a way that the exit pupil is further away from the eye lens than standard eyepieces, being are well suited for eyeglasses wearers
The longest autonomy on the market ensured by EcoLED™
OPTIKA has re-designed illumination in microscopy, once again: a special coating process on optics combined with a new, higher ratio between low consumptions and ultra-efficiency has addressed us to top brightness levels
6.43:1 zoom ratio – zoom magnification from 7x to 45x
Purposely designed for professional routine inspections, the total magnification can be even extended to 135x with 20x eyepieces and 1.5x additional lens, obtaining an excellent results in this class
Ultra-flat base with Ø 100 mm disc for diffused transmitted light
A new level of ergonomy and comfort is achieved during operations, with the ultra-flat base of only 3 cm height to ensure smooth specimen movement and the Ø 100 mm for top class diffusion of the transmitted light
Longlife LED illumination (providing over 20 years of use)
Money & energy saving thanks to LED long lifetime (65.000 hours, 22 years in case of 8 hours/day) which is more than 20 times compared to a standard halogen bulb
Cordless use, totally independent from mains/batteries connection
All models work with or without the batteries in place with three NiMH rechargeable batteries (not included) for the longest autonomy in outdoor use (12-hour autonomy, at medium intensity)
External power supply for enhanced safety and convenient servicing
OPTIKA’s safety first approach drives to the use of a low voltage, multi-plug, external power supply in order to prevent any risk of electric shock and heatflow inside the unit
Model: SLX-1
Cordless binocular stereomicroscope ideal for students, schools and amateurs to dissect and discover mainly biology and materials science in 3D, with turnable objective (2x-4x), FN 21 high eyepoint, precision fixed arm with handle and the latest technology of EcoLED™ illumination plus rechargeable batteries (not included). Slim and easy to carry, it is equipped with long lasting LED illumination to provide over 20 years of use
Model: SLX-2
Cordless binocular stereozoom microscope ideal for students, schools and amateurs to dissect and discover mainly biology and materials science in 3D, with 0.7x…4.5x zoom, FN 21 high eyepoint, precision fixed arm with handle and the latest technology of EcoLED™ illumination plus rechargeable batteries (not included). Slim and easy to carry, it is equipped with long lasting LED illumination to provide over 20 years of use

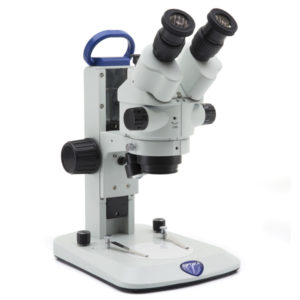

Model: SLX-3
Cordless trinocular stereozoom microscope ideal for students, schools and amateurs to dissect and discover mainly biology and materials science in 3D, with 0.7x…4.5x zoom, FN 21 high eyepoint, precision fixed arm with handle and the latest technology of EcoLED™ illumination plus rechargeable batteries (not included). Slim and easy to carry, it is equipped with long lasting LED illumination to provide over 20 years of use
Model: SLX-4
Binocular stereozoom microscope with extremely stable, long overhanging stand for observation of particularly large specimens. Smooth horizontal and vertical movements are ensured and the head can be easily swivelled for inspection at oblique angles. In case illumination is needed, choose from the wide choice of external illuminators available.
Model: SLX-5
Trinocular stereozoom microscope with extremely stable, long overhanging stand for observation of particularly large specimens. Smooth horizontal and vertical movements are ensured and the head can be easily swivelled for inspection at oblique angles. In case illumination is needed, choose from the wide choice of external illuminators available.
Some application examples showing the extreme versatility of SLX Series. Application in education, biology, botany and simple material analysis, where all the samples are mounted on standard glass slides.
