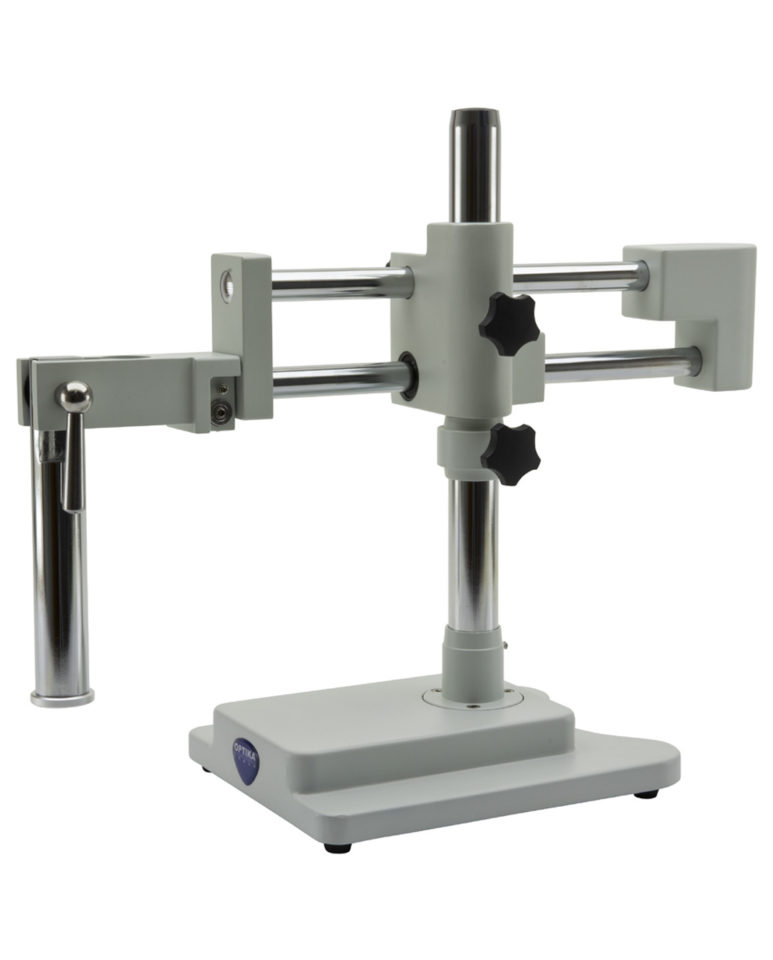

SZ-STL2
Extremely stable, hinged and long overhanging stand for observation of particularly large specimens to be matched with a focusing system and stereozoom head. Smooth horizontal
and vertical movements are ensured and the head can be easily swivelled and tilted for inspection at oblique angles. In case illumination is needed, choose from the wide choice of external illuminators available.
Base dimensions: 260×210 mm
Pillar dimensions: Ø32×425 mm
Horizontal arm: 515 mm
Maximum sample height: 440 mm
Swivelling movement: 360°
Tilting movement: 180°
Weight: 18.8 kg
To be used in combination with a focusing mechanism (SZ-A1 or SZ-A6)
Related Documents:
OPTIKA – SZ-STL2 – Technical Datasheet – EN - 73.65 KB
