SZ Series

An extremely comprehensive and valuable range of options to create the most suitable stereozoom for specific purposes, including dissection, biology, entomology, anatomy, chemistry and material science among the others.
Professional stereozoom heads with 6.72:1 or 8.46:1 zoom ratio, FN 22 or 23, high eyepoint eyepieces to be combined through a coaxial coarse and fine focusing mechanism or a simple coarse one to a variety of stands, some of them equipped with the latest technology of X-LED illumination.



Related Literature:



Images are for illustrative purposes only

10x/22mm or 10x/23mm PLAN EYEPIECES

Plan eyepieces with 22 or 23 mm field of view; high eye-point type, also suitable for the use of eyeglasses.

ZOOM OBJECTIVE

The High-Grade Zoom Objective grants a sharp and clear vision. With a zoom ratio of 6.72:1 or 8.46:1 it makes this series a perfect instrument for any application.

CLICK-STOP DETENTS

On SZO Heads the zoom objective is equipped with a precise click-stop mechanism which makes easy to quickly find the default zoom positions: 0.67x, 0.80x, 1x, 1.2x, 1.5x, 2x, 2.5x, 3x, 3.5x, 4x, and 4.5x.

X-LED: A SEA OF LIGHT

Where present, stands’ illuminators are equipped with X-LED systems:
– the incident illuminator with X-LED3 (single LED, 3.6W)
– the transmitted illuminator with X-LEDT1-T3 (12 or 60 LEDs)

X-LEDT3: SIMPLY UNMATCHABLE

Top class illuminator for transmitted light. With up to 60 LEDs geometrically arranged, it grants a perfect light uniformity and the observation of large samples thanks to its 10cm diameter.

Multi-plug power supply

SZ Series - Heads

SZX-B_model

Model: SZX-B


SZX Heads – Excellent Price/Performance Ratio For Any Laboratory.
Ideal for universities, experts & common routine lab requirements. 3D Greenough view for high resoluted images & large field depth. 22 mm field number and large working distance (up 110 mm). 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x. Simultaneous eyepiece & camera observation. Cost-effective solution for diversified applications.

SZX-T_model

Model: SZX-T


SZX Heads – Excellent Price/Performance Ratio For Any Laboratory. Ideal for universities, experts & common routine lab requirements, 3D Greenough view for high resoluted images & large field depth, 22 mm field number and large working distance (up 110 mm), 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x and cost-effective solution for diversified applications.

SZX-B_model

Model: SZX-BA


SZX-A Heads – Advanced Analysis With High Power Magnification. Purposely designed for particularly performing zoom conditions, 3D Greenough view for high resoluted images & large field depth, 23 mm field number and large working distance (up 110 mm), 8.46:1 zoom ratio – zoom magnification from 6.5x to 55x and high magnification change from overview to tiny details.

SZX-T_model

Model: SZX-TA


SZX-A Heads – Advanced Analysis With High Power Magnification. Purposely designed for particularly performing zoom conditions, 3D Greenough view for high resoluted images & large field depth, 23 mm field number and large working distance (up 110 mm), 8.46:1 zoom ratio – zoom magnification from 6.5x to 55x,  simultaneous eyepiece & camera observation and high magnification change from overview to tiny details.

SZX-B_model

Model: SZO-B


SZO Heads – Addressed For Extreme Reliability & Repeatability
» Ensuring the sharpest vision, high productivity, repetitive analysis
» 3D Greenough view for high resoluted images & large field depth
» 23 mm field number and extra large working distance (up 110 mm)
» 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x
» Multi-position click-stop – no need to move eyes from eyepieces

SZX-T_model

Model: SZO-T


SZO Heads – Addressed For Extreme Reliability & Repeatability. Ensuring the sharpest vision, high productivity, repetitive analysis, 3D Greenough view for high resoluted images & large field depth, 23 mm field number and extra large working distance (up 110 mm), 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x, simultaneous eyepiece & camera observation and Multi-position click-stop – no need to move eyes from eyepieces.

line

SZ Series - Pillar Stands

SZ-ST1_model

Model: SZ-ST1


Extremely stable, ultra-slim and modern stand to be matched with a focusing system and stereozoom head. The 25 mm height makes this stand very effective in preventing fatigue during operation, increasing the ergonomy and the performance as a result. In case illumination is needed, choose from the wide choice of external illuminators available.

SZ-ST2_model

Model: SZ-ST2


Top-class X-LEDT transmitted light, with geometrically arranged LEDs and X-LED3 incident light. The impressive incident illumination generated by the exclusive X-LED3 swivelling illuminator (3.6 W) is combined with an extralarge, settable 12-LED X-LEDT1 disc (2 W) for transmitted illumination.

SZ-ST3_model

Model: SZ-ST3


Top-class X-LEDT transmitted light, with geometrically arranged LEDs and X-LED3 incident light. The impressive incident illumination generated by the exclusive X-LED3 swivelling illuminator (3.6 W) is combined with an extralarge, settable 60-LED X-LEDT3 disc (4 W) for transmitted illumination.

SZ-ST7_models

Model: SZ-ST7

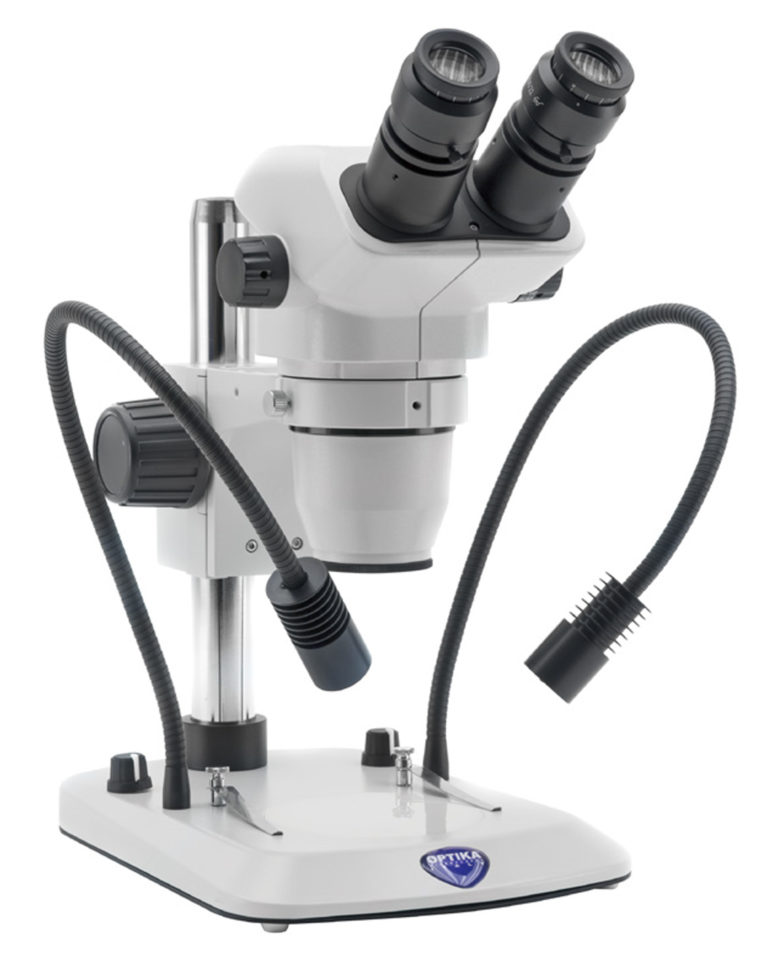

Top-class X-LEDT transmitted light, with geometrically arranged LEDs and freely orientable, flexible double gooseneck X-LED3 incident light The impressive incident illumination generated by the exclusive X-LED3 lighting system located in two flexible gooseneck arms (3.6 W each, for a total of 7.2 W) is combined with an extra-large, settable 12-LED X-LEDT1 disc (2 W) for transmitted illumination.

SZ-ST8_model

Model: SZ-ST8


Top-class X-LEDT transmitted light, with geometrically arranged LEDs and X-LED3 incident light. The impressive incident illumination generated by the exclusive X-LED3 swivelling illuminator (3.6 W) is combined with an extralarge, settable 60-LED X-LEDT3 disc (4 W) for transmitted illumination.

SZ-OBL_models

Model: SZ-OBL


Extremely stable and modern stand, equipped with rotatable mirror and X-LED3 transmitted light. Ideal for observing low-contrast samples that cannot be stained. The X-LED3 light source with its high efficiency and no indirect heating is ideal for observing “live” specimens. Tiltable mirror with 2 faces, one smooth and one knurled, to get maximum contrast from your samples.

line

SZ Series - Boom Stands / Flat Industrial Stands

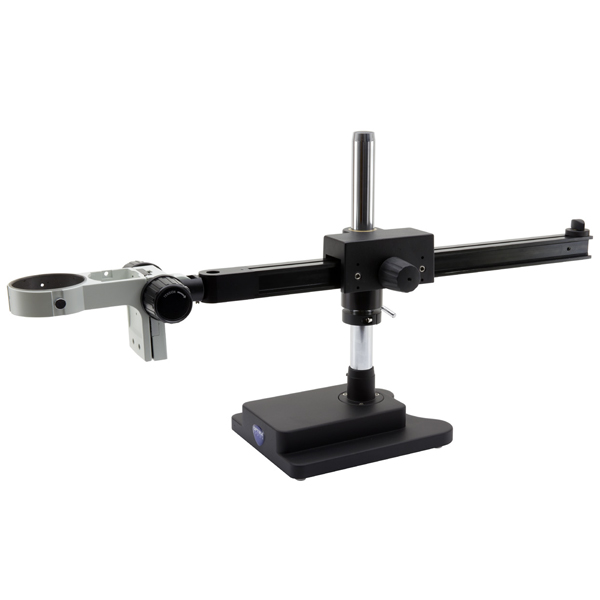

SZ-STL3X_model

Model: SZ-STL3X


Extremely stable, long overhanging stand complete of head holder and coarse focusing system for observation of particularly large specimens to be matched with a stereozoom head. Smooth horizontal and vertical movements are ensured and the head can be easily swivelled and tilted for inspection at oblique angles. In case illumination is needed, choose from the wide choice of
external illuminators available.

SZ-STL1_model

Model: SZ-STL1


Extremely stable, long overhanging stand for observation of particularly large specimens to be matched with a focusing system and stereozoom head. Smooth horizontal and vertical movements are ensured and the head can be easily swivelled for inspection at oblique angles. In case illumination is needed, choose from the wide choice of external illuminators available.

SZ-STL2_model

Model: SZ-STL2


xtremely stable, hinged and long overhanging stand for observation of particularly large specimens to be matched with a focusing system and stereozoom head. Smooth horizontal
and vertical movements are ensured and the head can be easily swivelled and tilted for inspection at oblique angles. In case illumination is needed, choose from the wide choice of external illuminators available.

SZ-STL5_models

Model: SZ-STL5


Highly versatile flexible arm stand, 360°rotating, ideal for industrial applications. It comes complete of head holder with focusing system and all the supports for table clamp and wall mount. Small footprint is ensured when not in use, saving valuable space on the bench. Wall mount and table clamp included.

SZ-STL5LED_model

Model: SZ-STL5LED


Highly versatile flexible arm stand, 360°rotating, ideal for industrial applications.It comes complete of the settable and exclusive X-LED3 incident illumination system, head holder with focusing system and all the supports for table clamp and wall mount (both included). Small footprint is ensured when not in use, saving valuable space on the bench. Multi-plug 100-240Vac/6Vdc external power supply. Head shown in picture not included.

ST-150_model

Model: ST-150


Large, simple plain stand with head holder and focusing mechanism with pillar.

ST-152_model

Model: ST-152


Large, simple plain stand with head holder and focusing  mechanism with fixed arm.

line

SZ Series - Focusing Mechanisms

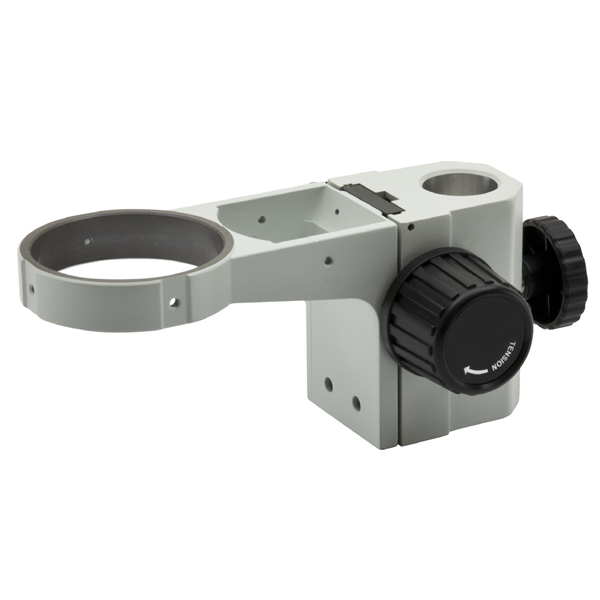

SZ-A1_model

Model: SZ-A1


Entry-level coarse focusing to raise or lower the head to focus.
Coarse focusing system (76 mm head holder, 32 mm pillar) with adjustable tension for standard stereomicroscope requirements.

SZ-A6_model

Model: SZ-A6


Coaxial coarse and fine focusing results in easy, precise conditions.
Coaxial coarse and fine focusing system (76 mm head holder, 32 mm pillar) with 2 μm fine resolution and adjustable tension ideal for extremely precise fine adjustments and smooth movements.

SZO-B + SZ-A1 + SZ-ST1

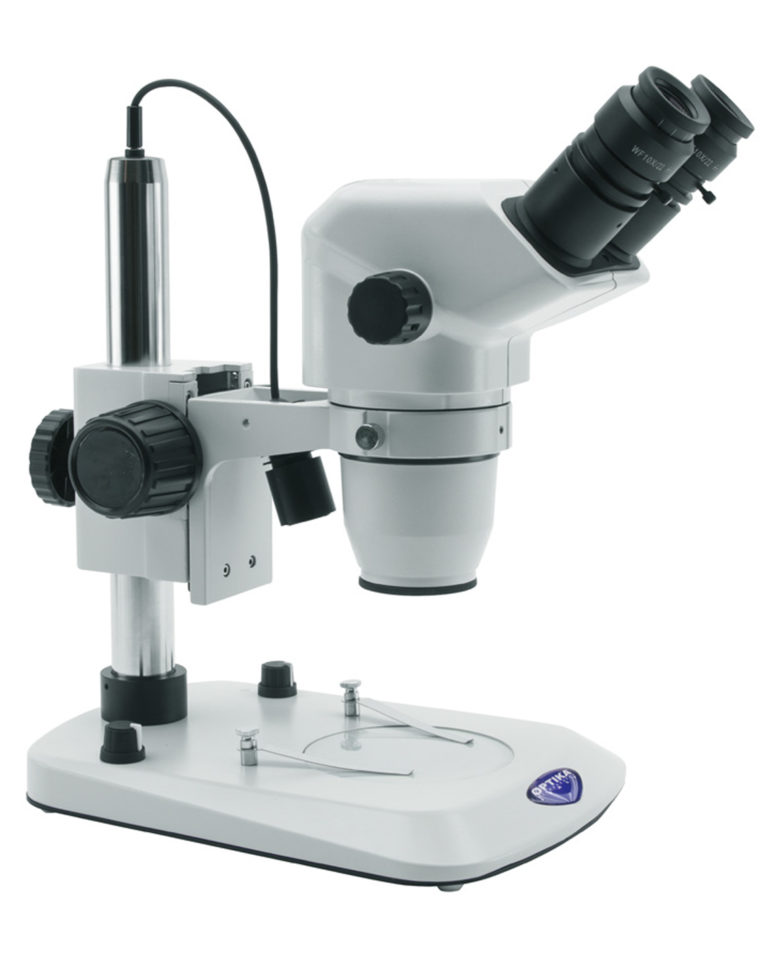

SZX-B + SZ-A1 + SZ-ST3

SZX-BA + SZ-A1 + SZ-ST7

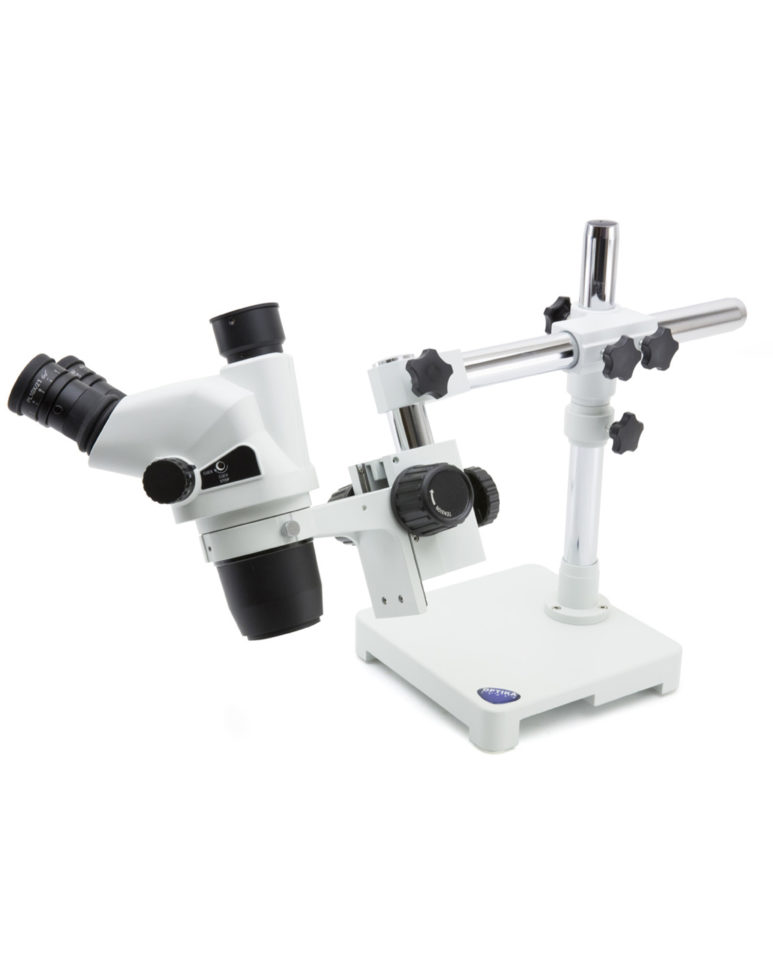

SZO-T + SZ-A1 + SZ-STL1

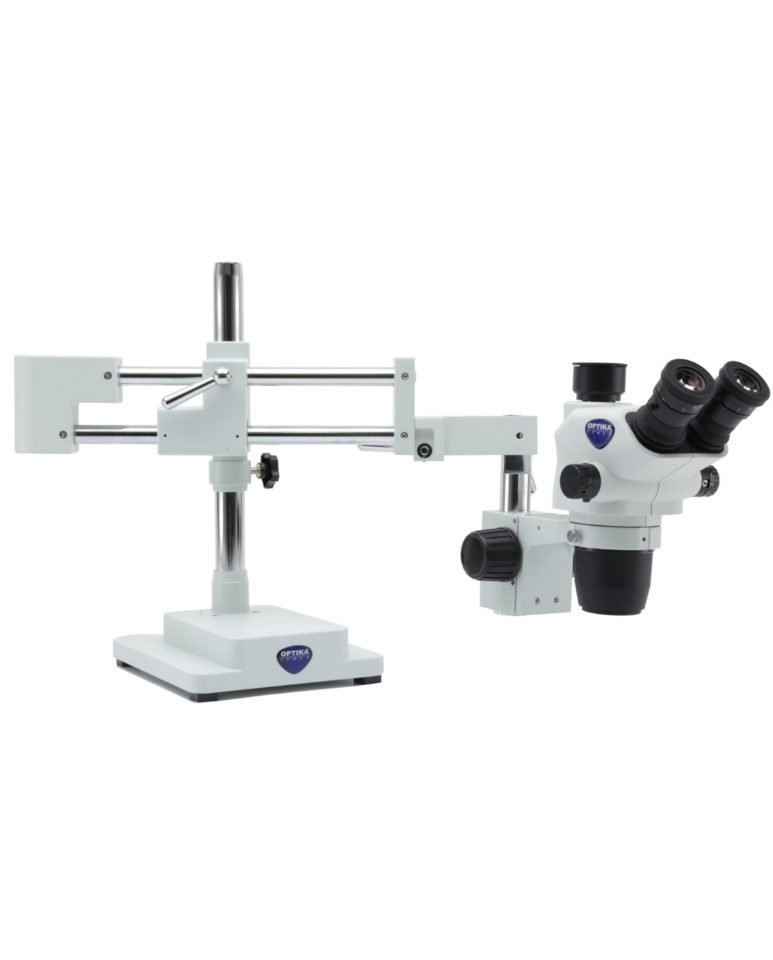

SZO-T + SZ-A1 + SZ-STL2
