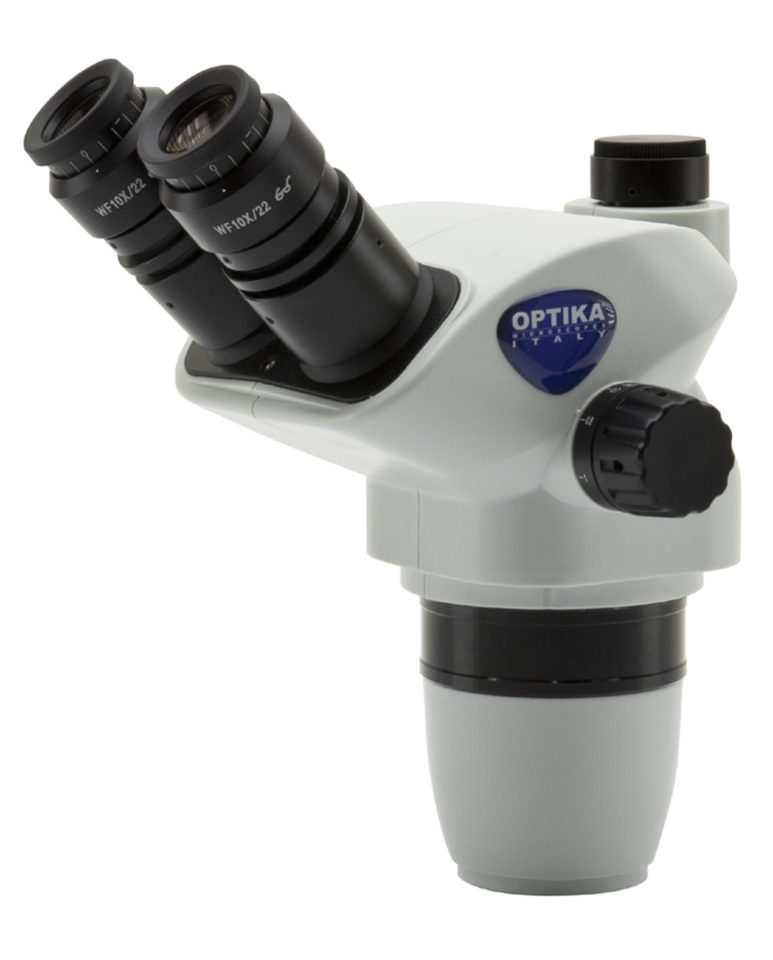

SZX-TA
SZX-A Heads – Advanced Analysis With High Power Magnification
» Purposely designed for particularly performing zoom conditions
» 3D Greenough view for high resoluted images & large field depth
» 23 mm field number and large working distance (up 110 mm)
» 8.46:1 zoom ratio – zoom magnification from 6.5x to 55x
» Simultaneous eyepiece & camera observation (on SZX-TA)
» High magnification change from overview to tiny details
Head: Trinocular (split ratio: 50/50), 360° rotating on all stands and 45° inclined.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/23 mm, high eyepoint, secured by screw and with integrated rubber cups.
Objective: Parfocal achromatic zoom 0.65x…5.5x (zoom factor 8.46:1).
Working distance: 102 mm.
